Electroless Nickel Plating Connection Terminal Block for Custom Current and Voltage Settings

5PCS
MOQ
3$-5$/PCS
Price
Electroless Nickel Plating Connection Terminal Block for Custom Current and Voltage Settings
Features Gallery Product Description Request A Quote
Features
Specifications
INSULATOR RESISTANCE: 2000MΩ@500VDC
RUBBER MATERILAS: SICLICONE RUBBER
SPRING LOCK WASHER MATERILAS: 304 STAINLESS STEEL
NUT M5 MATERILAS: H62 BRASS
WASHER 5 MATERILAS: H62 BRASS
Highlight:

Custom Voltage Connection Terminal Block

,

Custom Current Connection Terminal Block

,

Electroless Nickel Plating Connection Terminal Block
Basic Infomation
Place of Origin: China
Brand Name: SSCOre
Certification: ISO9001/ISO1400
Model Number: 16-X0854
Payment & Shipping Terms
Product Description

Product Description

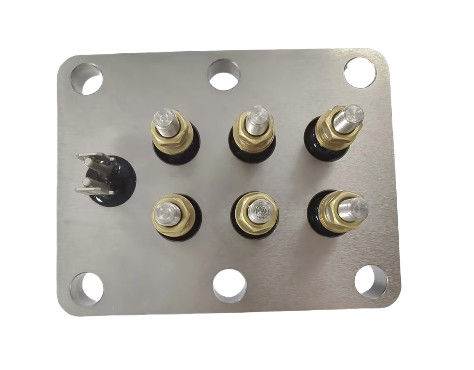

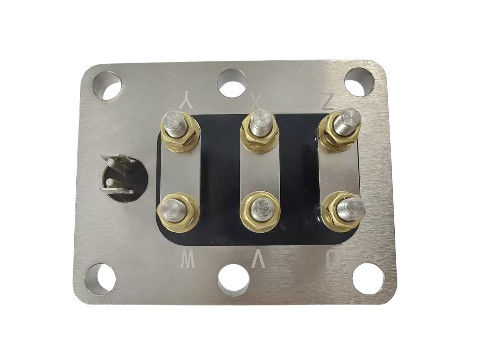

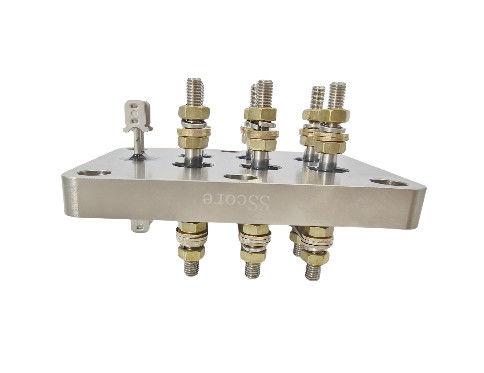

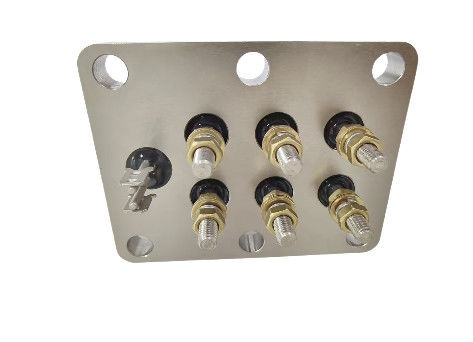

This product is a well - engineered component, designed with a combination of high - quality materials to meet the demands of diverse applications. The plate, crafted from C45 steel, provides a sturdy base with good mechanical properties. The power pin, also made of C45 steel, is suitable for handling power - related electrical currents. The control pin, constructed from SUH446 stainless steel, offers excellent corrosion resistance, which is crucial for maintaining reliable electrical connections in various environments.



ELAN #48 glass is incorporated to ensure effective insulation between different electrical elements. The TAB, made of SPCC with nickel plating, serves as a reliable connection point. The use of silicone rubber provides flexibility and sealing properties, while the H62 brass nuts and washers offer good electrical conductivity and corrosion resistance. The 304 stainless - steel spring lock washer ensures a secure connection, and the nickel - plated SPCC connector plate further enhances the overall electrical performance.

Features

Feature Description
Leak - proof Design Passes a leak test of 4.0MPa with N2 for 1 minute without any leakage. This ensures the product can be used in applications where gas - tight or liquid - tight conditions are required, protecting internal components from environmental factors.
High Insulator Resistance Exhibits an insulator resistance of 2000MΩ@500VDC, effectively isolating electrical currents and preventing short - circuits, ensuring safe and stable electrical operation.
High - voltage Tolerance The power pin withstands 3000VAC for 2 seconds with a maximum leakage current of 0.5mA, and the control pin withstands 2000VAC for 2 seconds with a maximum leakage current of 0.5mA, both without breakdown or flashover. This makes the product suitable for applications with high - voltage requirements.
Nickel Plated Finish Has a nickel plating with a thickness of 2 - 4μm (except for the TABS). Nickel plating enhances corrosion resistance, improves the surface finish, and provides better electrical conductivity.
Burr - free No burrs are permitted, ensuring smooth handling, easy assembly, and preventing damage to other components during installation.
Standard Tolerance Unless otherwise specified, follows the GB/T 1804 - m tolerance standard, ensuring consistent and interchangeable parts.


Technical Parameters

Parameter Specification
Plate Material C45 Steel
Power Pin Material C45 Steel
Control Pin Material SUH446 Stainless Steel
Glass Type ELAN #48
TAB Material SPCC, Nickel Plating
Rubber Material Silicone Rubber
Nut M5 Material H62 Brass
Washer 5 Material H62 Brass
Spring Lock Washer Material 304 Stainless Steel
Connector Plate Material SPCC, Nickel Plating
Leak Test 4.0MPa with N2, 1 minute, no leak
Insulator Resistance 2000MΩ@500VDC
HI - POT Test (Power Pin) 3000VAC, 2 seconds, max. leakage current 0.5mA
HI - POT Test (Control Pin) 2000VAC, 2 seconds, max. leakage current 0.5mA
Nickel Plating Thickness 2 - 4μm (except TABS)
Tolerance GB/T 1804 - m


Applications

This product can be used in a wide range of electrical systems, such as in industrial control panels, where reliable electrical connections, high - voltage resistance, and leak - proof properties are essential. It can also be applied in some electrical equipment in the automotive industry, especially in areas where there are both power - carrying and control - signal - transmitting requirements.

Customization

We understand that different customers may have specific requirements. Our team is available to discuss customization options. Whether it's adjusting the material selection according to specific environmental or performance needs, modifying the dimensions within the tolerance range, or changing the plating thickness to meet particular corrosion - resistance or electrical - conductivity demands, we can work with you to develop a customized solution.

Support and Services

  • Technical Support: Our experienced technical team is available to provide assistance. We can help with product selection, offer installation guidance, and troubleshoot any problems you may encounter. Whether you have questions about the product's compatibility with other components or need advice on system integration, we're here to support you.
  • Warranty: We offer a warranty period to cover any manufacturing defects. If the product fails to meet the specified performance criteria during the warranty period, we will repair or replace it free of charge.
  • After - sales Service: Our commitment to customer satisfaction extends beyond the sale. We provide after - sales support, including maintenance advice, supply of spare parts, and product upgrades. We aim to ensure the long - term performance and reliability of our products.

Packing and Shipping

  • Packing: The product is carefully packaged using anti - static and shock - absorbing materials. This packaging protects the product from damage during handling and transportation, ensuring it reaches you in perfect condition.
  • Shipping: We work with reliable shipping carriers to offer a variety of shipping options. You can choose the shipping method that best suits your needs, whether it's for fast delivery or cost - effective transportation.

FAQ

  • Q: What is the material of the plate?
  • A: The plate is made of C45 steel.
  • Q: What is the HI - POT test voltage for the control pin?
  • A: The HI - POT test voltage for the control pin is 2000VAC for 2 seconds, with a maximum leakage current of 0.5mA.
  • Q: Does the product come with a warranty?
  • A: Yes, we offer a warranty to cover manufacturing defects.
