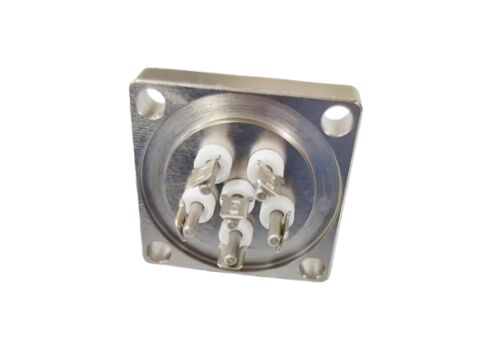

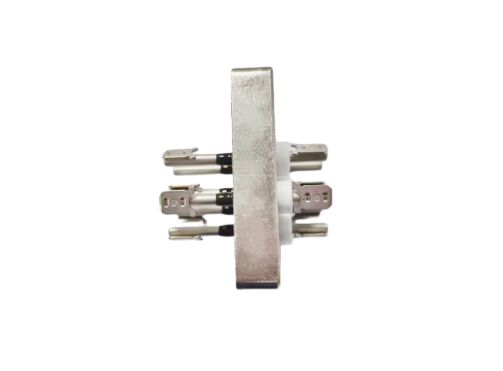

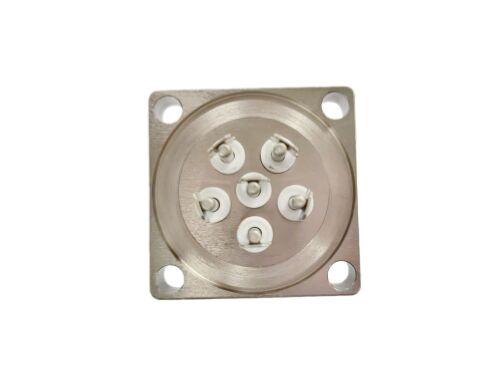

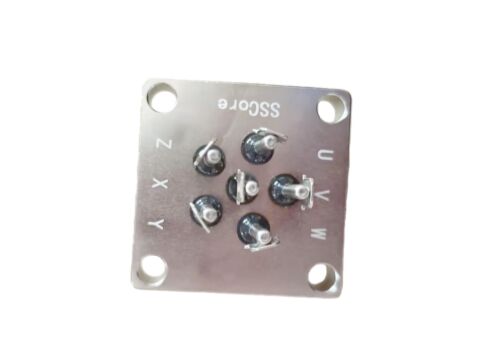

RoHS Certified Connection Terminal Board 52mm X 52mm X 44.2mm Ideal for Electrical Panel Wiring and Connection Solutions

Product Description:

The Connection Terminal Plate is an essential component designed to facilitate secure and efficient electrical connections in various industrial and commercial applications. With precise dimensions of 52mm x 52mm x 44.2mm, this terminal plate offers a compact yet robust solution for managing electrical connections on plate boards. Its carefully engineered size ensures compatibility with a wide range of equipment and mounting setups, making it an ideal choice for both new installations and retrofit projects.

One of the standout features of this product is its terminal style, which utilizes a screw clamp mechanism. The screw clamp terminal connection provides a reliable and durable method for securing wires and cables, ensuring a stable electrical connection that minimizes the risk of loosening due to vibration or thermal cycling. This style is preferred in many applications because it allows for easy installation and maintenance, while maintaining a firm grip on conductors of varying sizes. The screw clamp design also supports quick adjustments and replacements, contributing to reduced downtime in electrical systems.

The Connection Terminal Plate boasts a current rating of 30A, enabling it to handle substantial electrical loads safely and efficiently. This makes it suitable for a broad spectrum of applications, including power distribution panels, control cabinets, and industrial machinery. The ability to manage such current loads ensures that the terminal plate can be trusted in demanding environments where electrical reliability is paramount.

In addition to its mechanical and electrical attributes, this terminal connection plate features a nickel-plated surface treatment. The nickel plating serves multiple purposes: it enhances corrosion resistance, improves conductivity, and extends the overall lifespan of the terminal plate. This surface treatment is particularly beneficial in harsh environments where exposure to moisture, chemicals, or other corrosive agents could otherwise degrade the performance of electrical components. By providing a protective barrier, the nickel plating ensures that the plate board connection remains stable and reliable over time.

Furthermore, the Connection Terminal Plate is RoHS certified, underscoring its compliance with stringent environmental and safety standards. The Restriction of Hazardous Substances (RoHS) certification guarantees that the product is free from harmful materials such as lead, mercury, and cadmium, making it a safer choice for both installers and end-users. This certification also reflects a commitment to sustainability and environmental responsibility, aligning with modern regulatory requirements and industry best practices.

Overall, this terminal connection plate offers a combination of precise dimensions, robust screw clamp terminal style, high current rating, protective nickel plating, and eco-friendly certification that makes it a dependable component for plate board connection needs. Whether used in electrical panels, control systems, or other applications requiring secure and efficient electrical connections, this product delivers consistent performance and durability.

In summary, the Connection Terminal Plate is a versatile and reliable solution for creating secure plate board connections. Its compact size of 52mm x 52mm x 44.2mm ensures easy integration, while the screw clamp terminal style guarantees a strong and maintainable connection. The 30A current rating supports a wide range of electrical loads, and the nickel-plated surface treatment enhances durability and corrosion resistance. Additionally, the RoHS certification assures users of its environmental safety. This terminal connection plate is an excellent choice for anyone seeking a high-quality, long-lasting component for their electrical connection needs on plate boards.

Features:

• Product Name: Connection Terminal Plate
• Surface Treatment: Nickel Plated for enhanced durability and corrosion resistance
• Excellent Insulating Property with 1000MΩ resistance
• Made from high-quality Copper material for optimal conductivity
• Compact Dimensions: 52mm X 52mm X 44.2mm
• Wide Working Temperature Range: -40°C to +150°C
• Ideal for Plate Board Connection applications
• Reliable Terminal Plate Connection ensuring secure electrical contacts
• Suitable for use as a Connection Terminal Board in various electrical systems

Technical Parameters:

Applications:

The Sscore Connection Terminal Plate is an essential component designed for various electrical and electronic applications. Known also as a Connection Board Plate, Board Connection Plate, or Terminal Connection Plate, this product is manufactured with high-quality copper material, ensuring excellent conductivity and durability. Featuring a screw clamp terminal style and 6 poles, it supports a current rating of up to 30A, making it ideal for medium-power electrical connections in both industrial and commercial settings.

Certified under IATF16949 and RoHS standards, the Sscore Connection Terminal Plate guarantees compliance with international quality and environmental regulations, providing users with a reliable and safe solution for their wiring needs. With a supply ability of 100,000 pieces per month, Sscore ensures a steady availability to meet the demands of bulk purchasers. The minimum order quantity starts at just 5 pieces, making it accessible for small-scale projects as well.

This Terminal Connection Plate finds extensive application in a variety of scenarios. It is widely used in control panels, distribution boxes, and electrical cabinets where secure and organized wiring is crucial. The screw clamp terminal style allows for easy and firm wire connections, minimizing maintenance and preventing loose contacts. It is also suitable for connection boards in automation equipment, power supply units, and machinery requiring reliable electrical interconnections.

Packaging is done carefully with Cato packing to ensure the product arrives safely without any damage during transit. Delivery times range between 7 to 14 workdays, allowing for timely project execution. Sscore offers flexible payment terms including L/C, D/A, T/T, and D/P to accommodate various buyer preferences.

The price range of 300 to 800 ￥ per unit reflects the high quality and precision engineering of the Connection Board Plate. Whether you are upgrading existing electrical infrastructure or assembling new equipment, this Board Connection Plate from Sscore provides a dependable, efficient, and cost-effective solution for your terminal connection requirements.

Customization:

Our Sscore Connection Terminal Plate offers superior quality with IATF16949 and RoHS certifications, ensuring reliable performance for your projects.

Made from high-quality copper with a nickel-plated surface treatment, this Connection Plate Board delivers excellent conductivity and corrosion resistance.

With dimensions of 52mm x 52mm x 44.2mm and a current rating of 30A, the Terminal Plate Connection is designed to meet diverse electrical connection needs efficiently.

We provide flexible product customization services starting from a minimum order quantity of 5 pieces, with prices ranging from 300 to 800 ￥ per unit.

Packaging is carefully handled with Cato packing to ensure product safety during transit, and delivery time is typically between 7 to 14 work days.

Our supply ability stands at 100,000 pieces per month, supporting bulk orders and continuous supply for your business.

Payment terms include L/C, D/A, T/T, and D/P, offering convenience and security in transactions.

Choose Sscore's Connection Plate Board customization services for reliable Terminal Plate Connection solutions tailored to your specifications.

Support and Services:

For technical support and services related to the Connection Terminal Plate, please refer to the product manual and installation guide provided with the product. Ensure that all installation and maintenance procedures are followed as per the guidelines to guarantee optimal performance and safety.

If you encounter any issues or require assistance with the Connection Terminal Plate, consult the troubleshooting section of the documentation. Common problems and their solutions are detailed to help you resolve most issues independently.

Replacement parts and accessories for the Connection Terminal Plate are available through authorized distributors. Use only genuine parts to maintain the integrity and safety of the product.

For warranty information, please review the warranty terms included with your purchase. The warranty covers manufacturing defects under normal use and installation.

Regular inspection and maintenance of the Connection Terminal Plate are recommended to ensure long-term reliability. Clean the terminal plate using a dry cloth and avoid exposure to moisture or corrosive environments.

Professional installation and servicing by qualified personnel are advised to comply with safety standards and local regulations.

Packing and Shipping:

Each Connection Terminal Plate is carefully packaged to ensure maximum protection during transit. The product is placed in a sturdy, custom-fitted box with cushioning materials to prevent any damage from shocks or vibrations.

The packaging includes clear labeling with product details, handling instructions, and safety warnings to facilitate easy identification and safe handling.

For shipping, the packages are securely sealed and stacked on pallets, wrapped with stretch film to avoid movement and exposure to moisture. We use reliable courier services to guarantee timely and safe delivery to your specified location.

Bulk orders are packaged in larger cartons with appropriate padding between individual units to maintain product integrity throughout the shipping process.

We prioritize careful packaging and secure shipping methods to ensure that every Connection Terminal Plate arrives in perfect condition, ready for immediate use.

FAQ:

Q1: What is the minimum order quantity for the Sscore Connection Terminal Plate?

A1: The minimum order quantity for the Sscore Connection Terminal Plate is 5 pieces.

Q2: What certifications does the Sscore Connection Terminal Plate have?

A2: The Sscore Connection Terminal Plate is certified with IATF16949.

Q3: What is the price range for the Sscore Connection Terminal Plate?

A3: The price range for the Sscore Connection Terminal Plate is between 300 and 800 Chinese Yuan (￥) per piece.

Q4: How is the Sscore Connection Terminal Plate packaged?

A4: The Sscore Connection Terminal Plate is packaged using Cato Packing to ensure safe delivery.

Q5: What is the delivery time and supply ability for the Sscore Connection Terminal Plate?

A5: The delivery time is typically 7 to 14 working days, with a supply ability of 100,000 pieces per month.

Q6: What payment terms are accepted for purchasing the Sscore Connection Terminal Plate?

A6: The accepted payment terms include L/C, D/A, T/T, and D/P.
