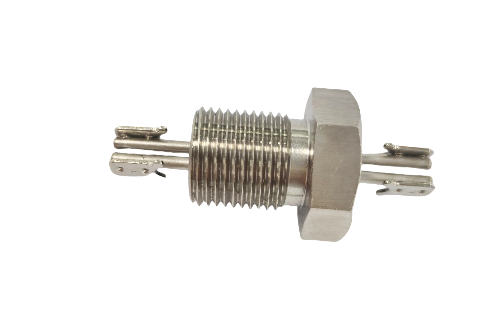

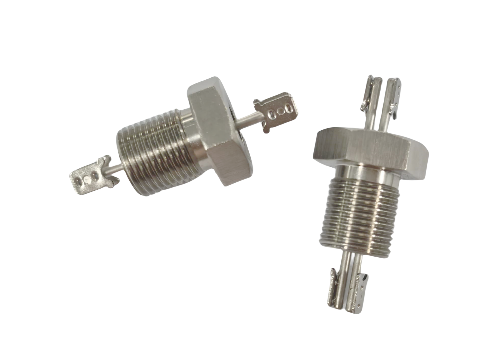

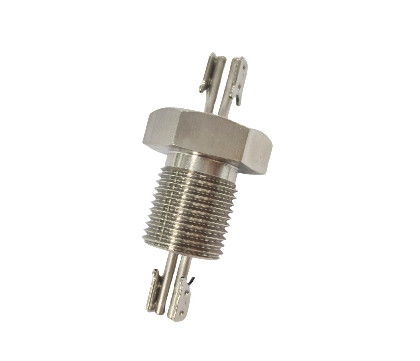

Hermetic Seal Connectors Incorporating 304 Stainless Steel Housing Material Perfect for High Reliability Sealing Requirements

Product Description:

Hermetic Feedthrough Connectors are essential components designed to provide reliable electrical connections while maintaining an airtight seal in demanding environments. Manufactured by SSCore, a trusted name in precision engineering, these connectors are engineered to meet the stringent requirements of various high-performance applications, including vacuum systems, aerospace technology, and medical devices. With a focus on durability, precision, and exceptional insulation properties, SSCore’s Hermetic Feedthrough Connectors ensure optimal performance where maintaining hermetic integrity is critical.

One of the standout features of these Hermetic Feedthrough Devices is their impressive insulator resistance, rated at 2000MΩ at 1000VDC. This high insulator resistance guarantees excellent electrical isolation, minimizing leakage currents and ensuring signal integrity even under high voltage conditions. Such reliability is paramount in sensitive applications like medical instrumentation and aerospace systems, where any compromise in electrical insulation can lead to significant operational failures or safety risks.

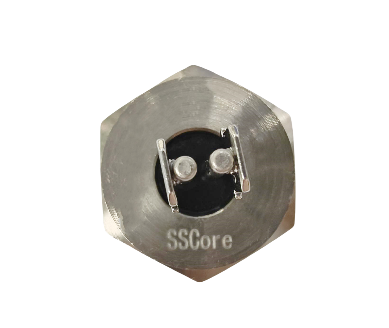

The connectors feature a 2-pin configuration, providing a straightforward yet effective solution for transmitting electrical signals or power through a sealed barrier. This pin number is ideal for applications requiring minimal but highly reliable feedthrough connections. The pins are housed within an insulator constructed from TAB SPCC, a material known for its robustness and excellent mechanical properties. The use of SPCC (cold-rolled steel) for the TAB ensures that the connectors can withstand mechanical stress and thermal cycling without degradation, further enhancing their longevity and performance in harsh environments.

Hermetic Sealing Connectors like these are specifically designed to maintain an airtight seal between different environments, preventing the ingress of gases, liquids, or contaminants that could impair device functionality. This hermetic sealing capability is critical in vacuum systems, where maintaining a controlled environment is essential for process integrity and measurement accuracy. The SSCore Hermetic Feedthrough Connectors provide a dependable barrier that preserves vacuum integrity while enabling electrical connectivity, thereby supporting the precise operation of vacuum pumps, analytical instruments, and other vacuum-based equipment.

In aerospace applications, the importance of Hermetic Cable Connectors cannot be overstated. These connectors must endure extreme conditions, including wide temperature fluctuations, vibration, and exposure to corrosive elements, all while ensuring uninterrupted electrical performance. SSCore’s Hermetic Feedthrough Connectors are engineered to meet these challenges, offering robust construction and reliable hermetic sealing that comply with stringent aerospace standards. Their compact design and secure pin configuration make them suitable for integration into various aerospace systems, from avionics to satellite instrumentation.

The medical device industry also benefits significantly from the use of Hermetic Feedthrough Devices. Medical equipment often requires components that can be sterilized and that prevent contamination, ensuring patient safety and device reliability. The hermetic sealing properties of these connectors help create a sterile barrier, while their high insulator resistance and durable materials contribute to the long-term stability of medical diagnostic and therapeutic devices. Whether used in imaging systems, surgical instruments, or implantable devices, SSCore’s connectors deliver consistent performance that meets the rigorous demands of healthcare applications.

Overall, SSCore’s Hermetic Feedthrough Connectors exemplify quality and engineering excellence. Their combination of high insulator resistance, durable TAB SPCC insulators, and reliable 2-pin design makes them an ideal choice for any application requiring robust hermetic sealing and dependable electrical connectivity. Whether in vacuum systems, aerospace, or medical devices, these Hermetic Cable Connectors provide the necessary performance to ensure safety, precision, and longevity. SSCore continues to uphold its reputation by offering connectors that not only meet but exceed industry standards, making them a preferred solution for engineers and designers worldwide.

Features:

• Product Name: Hermetic Feedthrough Connectors
• Sealing Type: Hermetic Seal
• Application: Suitable for Vacuum Systems, Aerospace, and Medical Devices
• Temperature Rating: Operates reliably from -40°C to 107°C
• Housing Material: Made of durable 304 Stainless Steel
• Pin Materials: Constructed with SUH446 Stainless Steel for enhanced performance
• Features Hermetic Cable Connectors ensuring airtight connections
• Includes Hermetic Fitting Connectors for secure and reliable fittings
• Designed as Hermetic Seal Connectors to maintain vacuum integrity and prevent leakage

Technical Parameters:

Applications:

The SSCore Hermetic Feedthrough Connectors are designed for a wide range of critical applications where reliable hermetic sealing and electrical connectivity are essential. These connectors are ideal for use in environments that demand airtight and moisture-proof connections, such as aerospace, medical devices, military equipment, and high-performance industrial systems. The hermetic seal ensures that the connector maintains integrity under extreme conditions, preventing contamination and ensuring long-term durability.

In aerospace and defense sectors, the Hermetic Connectors System from SSCore plays a vital role in maintaining secure electrical pathways through pressure vessels, vacuum chambers, and other sealed environments. Their 304 stainless steel housing guarantees resistance to corrosion and mechanical stress, while the voltage rating of 2000 VAC provides robust electrical insulation for sensitive instrumentation. The 2-pin configuration supports straightforward connectivity requirements, and the contact termination options of crimp or solder offer flexibility for diverse assembly methods.

Hermetic Feedthrough Couplers from SSCore are also extensively used in medical and scientific equipment where vacuum or controlled atmospheres are necessary. These couplers enable the transfer of electrical signals or power without compromising the sealed environment, critical for devices like MRI machines, vacuum furnaces, or semiconductor manufacturing tools. The vacuum packaging of the product ensures that the connectors are delivered free from contaminants, ready for immediate integration.

SSCore’s Hermetic Feedthrough Assemblies are suitable for industrial automation systems and instrumentation that require reliable feedthrough connections in harsh or hazardous environments. With a supply ability of 50,000 pieces per month and a minimum order quantity of just 5 pieces, customers can efficiently scale their procurement to meet production demands. The delivery time ranges from 7 to 14 work days, ensuring timely availability for urgent projects. Payment terms including L/C, D/A, T/T, and D/P provide flexible purchasing options to accommodate various business needs.

Overall, the SSCore Hermetic Feedthrough Connectors combine advanced sealing technology, durable materials, and versatile electrical termination options to serve a broad spectrum of application occasions and scenarios where maintaining a hermetic seal alongside dependable electrical connectivity is paramount.

Customization:

SSCore offers customized Hermetic Feedthrough Connectors designed to meet your specific requirements. Our Hermetic Fitting Connectors feature a durable SPCC TAB and high-quality ELAN #48 glass materials, ensuring reliable Hermetic Sealing Connectors performance with a temperature rating from -40°C to 107°C. Each connector includes 2 pins with options for crimp or solder contact termination, providing versatile connectivity solutions.

We maintain a supply ability of 50,000 pieces per month, with a minimum order quantity of 5 pieces. Our pricing ranges from 10 to 60 ￥ per unit, depending on customization and order volume. All products are carefully packaged in vacuum packaging to preserve quality and integrity during transit.

Delivery time is typically between 7 to 14 work days. We accept multiple payment terms including L/C, D/A, T/T, and D/P, ensuring a smooth and flexible purchasing process. Trust SSCore for your Hermetic Seal Connectors needs, combining precision engineering with reliable delivery and support.

Support and Services:

Our Hermetic Feedthrough Connectors are designed to provide reliable and durable electrical connections in environments requiring airtight and vacuum-tight seals. To ensure optimal performance, please follow the installation and maintenance guidelines carefully.

Installation:

Before installation, inspect the connector for any signs of damage or contamination. Ensure that the mating parts are clean and free from debris. Use appropriate tools to avoid damaging the connector or its sealing surfaces. Torque specifications should be adhered to, as over-tightening can compromise the hermetic seal.

Maintenance:

Regularly inspect the connectors for signs of wear, corrosion, or damage. If the connector is exposed to harsh environments, periodic cleaning with suitable solvents is recommended to maintain performance. Avoid using abrasive materials that could damage the sealing surfaces.

Troubleshooting:

If you encounter issues such as signal loss or leakage, verify the integrity of the seal and the condition of the contacts. Re-seat the connector to ensure proper mating. In cases of persistent problems, consult the product datasheet for detailed specifications or consider replacement.

Warranty and Support:

Our Hermetic Feedthrough Connectors come with a limited warranty covering manufacturing defects. For technical assistance, please refer to the product documentation or contact our support team through the official channels.

Packing and Shipping:

Our Hermetic Feedthrough Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static, moisture-resistant packaging to prevent any damage from environmental factors.

The connectors are then securely placed in custom-designed foam inserts within sturdy, corrugated cardboard boxes to minimize movement and absorb shocks during shipping.

For bulk orders, multiple units are organized and cushioned to maintain product integrity, with clear labeling for easy identification.

We partner with reliable shipping carriers to provide timely and safe delivery worldwide, offering tracking options for your convenience.

Upon receipt, customers are advised to inspect the packaging and product for any signs of damage and report any issues immediately to ensure prompt resolution.

FAQ:

Q1: What is the minimum order quantity for SSCore Hermetic Feedthrough Connectors?

A1: The minimum order quantity for SSCore Hermetic Feedthrough Connectors is 5 pieces.

Q2: What is the price range for these connectors?

A2: The price ranges from 10 to 60 ￥ per piece, depending on specifications and order quantity.

Q3: How are the Hermetic Feedthrough Connectors packaged?

A3: The connectors are packaged in a vacuum package to ensure product integrity and protection.

Q4: What is the typical delivery time for an order?

A4: Delivery usually takes between 7 to 14 working days after the order is confirmed.

Q5: What payment methods are accepted for purchasing SSCore Hermetic Feedthrough Connectors?

A5: We accept multiple payment terms including L/C (Letter of Credit), D/A (Documents Against Acceptance), T/T (Telegraphic Transfer), and D/P (Documents Against Payment).
