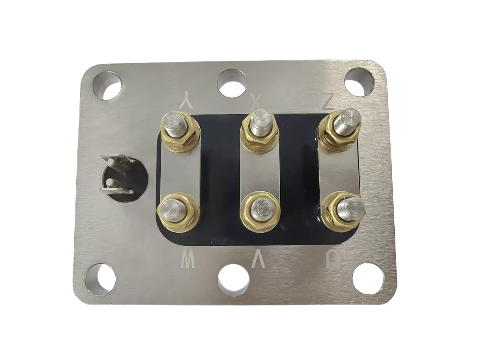

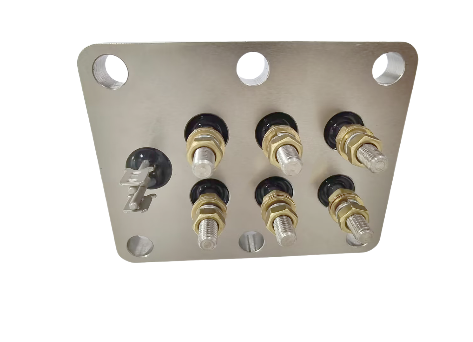

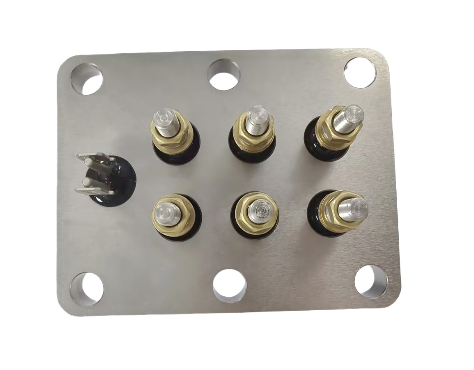

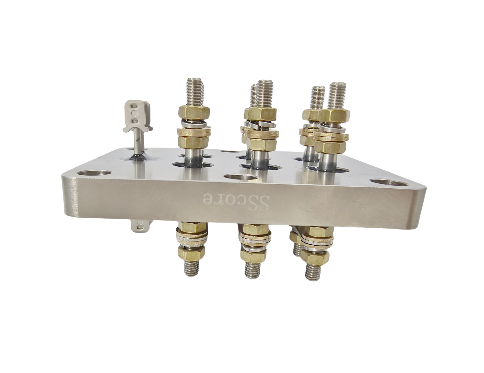

High Sealing Performance 4MPa Does Not Leak Connection Terminal Board Perfect for Operating Temperature Minus 40°C To 105°C Power Management

Product Description:

The Connection Terminal Plate is a high-quality and reliable solution designed to facilitate efficient electrical connections in various industrial and commercial applications. Engineered with precision and crafted from superior materials, this terminal connection board ensures durability, safety, and excellent performance under demanding conditions. Its robust construction and advanced sealing capabilities make it an ideal choice for systems requiring secure and leak-proof electrical connections.

One of the standout features of this Terminal Plate Connection is its use of silicone rubber, a material renowned for its exceptional flexibility, durability, and resistance to environmental factors. Silicone rubber offers outstanding thermal stability, ensuring that the terminal connection board can withstand a wide range of temperatures without degradation. This rubber also provides excellent insulation properties, which enhances the overall safety of the terminal plate connection by preventing electrical shorts and reducing the risk of damage caused by moisture or dust ingress.

The terminal plate connection’s tabs are manufactured from SPC (Steel Plate Cold-rolled), a material known for its strength and excellent conductivity. SPC ensures that the electrical current flows efficiently through the connection points with minimal resistance, contributing to the overall effectiveness of the terminal connection board. The strength of SPC also guarantees that the tabs remain securely in place, providing a stable and reliable connection over extended periods of use.

In addition to the tabs, the pins of this terminal connection board are fabricated from high-grade C45 steel and SUH446 alloy. The combination of C45 and SUH446 materials offers an optimal balance of mechanical strength, corrosion resistance, and conductivity. C45 steel is known for its toughness and wear resistance, making it suitable for applications where the pins may be subjected to mechanical stress. Meanwhile, SUH446, a heat-resistant alloy, provides excellent durability under high-temperature conditions, ensuring the terminal plate connection maintains its integrity even in challenging environments.

A key advantage of this terminal plate connection is its high sealing performance, capable of withstanding pressures up to 4MPa without any leakage. This remarkable sealing efficiency is critical for applications involving fluids or gases, where maintaining a secure and leak-proof connection is essential. The superior sealing provided by the silicone rubber and precision engineering of the terminal connection board significantly reduces the risk of contamination and ensures the longevity of the electrical system.

This connection terminal plate is equipped with 8 pins, providing ample connection points for a variety of wiring needs. The 8-pin configuration allows for multiple circuits or signals to be connected simultaneously, enhancing the versatility of the terminal plate connection in complex electrical systems. Whether used in control panels, machinery, or automation equipment, the 8-pin design supports efficient organization and management of electrical connections.

Overall, the Connection Terminal Plate represents a perfect blend of advanced materials and thoughtful design to deliver a terminal connection board that excels in performance, reliability, and safety. Its silicone rubber components, SPC tabs, and C45/SUH446 pins work in harmony to provide a terminal plate connection that can meet the rigorous demands of modern electrical applications. The high sealing performance up to 4MPa ensures that the terminal plate connection maintains its integrity even under high-pressure conditions, preventing leaks and safeguarding the connected systems.

For industries seeking a dependable and efficient solution for their electrical connection needs, this terminal plate connection offers unparalleled quality and performance. Its robust construction, combined with the use of premium materials and a practical 8-pin design, makes it an excellent choice for a wide range of electrical and electronic applications. By choosing this connection terminal board, users can ensure secure, durable, and high-performing connections that stand the test of time.

Features:

• Product Name: Connection Terminal Plate
• Material of Spring Lock Washer: 304 Stainless Steel
• Tab Material: SPC
• Pin Material: C45 and SUH446
• Nut M5 Material: H62 Brass
• Plate Material: C45
• Designed as a reliable Board Connection Plate
• Functions effectively as a Terminal Connection Plate
• High-quality Board Connection Plate ensuring durability and stability

Technical Parameters:

Applications:

The Sscore Connection Terminal Plate, model number 16-X0854, is an essential component designed for a wide range of electrical and industrial applications. Known for its high sealing performance, this terminal connection plate ensures a leak-free operation even under a pressure of 4MPa, making it highly reliable for demanding environments. Manufactured with premium materials such as C45 and SUH446 for the pins, C45 for the plate, and H62 brass for the M5 nuts, it guarantees durability and long-lasting performance. With 8 pins available, this board connection plate offers efficient and secure connections, ideal for complex wiring systems.

Certified under IATF16949, the Sscore Board Terminal Connection adheres to stringent quality standards, making it suitable for automotive and industrial sectors where precision and reliability are paramount. Its robust construction and superior sealing make it an excellent choice for applications exposed to high pressure or harsh conditions, such as automotive control units, industrial machinery, and heavy equipment wiring.

This terminal connection plate is also widely used in electrical panels and control boards, where secure and stable connections are critical. The board connection plate facilitates easy and organized wiring, reducing the risk of loose connections and electrical failures. Its design allows for efficient assembly and maintenance, making it ideal for factory automation systems, power distribution boards, and communication equipment.

With a minimum order quantity of 5 pieces and a supply capacity of 100,000 pieces per month, Sscore ensures timely delivery within 7 to 14 working days, packaged carefully in cato packing to protect the product during transit. Payment options including L/C, D/A, T/T, and D/P provide flexibility to meet diverse customer needs. Priced between 300 and 800 ￥, this connection terminal plate offers excellent value for high-quality performance.

In summary, the Sscore Terminal Connection Plate 16-X0854 is perfect for use in automotive wiring harnesses, industrial control panels, electronic devices, and any application requiring reliable board terminal connection solutions. Its combination of robust materials, precise manufacturing, and high sealing capability makes it a preferred choice for engineers and technicians aiming for long-term, stable electrical connections.

Customization:

Our Sscore Connection Terminal Plate, model number 16-X0854, offers exceptional quality and reliability for your electrical needs. Manufactured with high-grade C45 plate material and pins made from C45 and SUH446, this Board Connection Plate ensures durability and long-lasting performance.

Certified under IATF16949 and compliant with ROHS standards, the Terminal Connection Board guarantees high sealing performance with a pressure resistance of 4MPa without any leakage. The nut used is M5 made from H62 brass, further enhancing the product's robustness.

We supply the Connection Plate Board with a minimum order quantity of 5 pieces, priced between 300 to 800 ￥ per unit. The products are carefully packed using Cato Packing to ensure safe delivery.

With a monthly supply ability of 100,000 pieces and a delivery time ranging from 7 to 14 work days, we ensure timely fulfillment of your orders. Payment terms include L/C, D/A, T/T, and D/P for your convenience.

Choose Sscore's Connection Terminal Plate for a reliable and efficient solution to your board connection needs.

Support and Services:

Our Connection Terminal Plate product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, troubleshooting assistance, and maintenance tips to help you get the most out of your terminal plates. Our technical support team is available to answer any product-related questions and to assist with compatibility and integration issues. Additionally, we offer repair and replacement services under the product warranty to guarantee reliability and longevity. For professional advice and support, please refer to the resources provided with your purchase or visit our official website.

Packing and Shipping:

Each Connection Terminal Plate is carefully packed in a protective plastic bag to prevent damage during handling and transportation.

The plastic bag is then placed inside a sturdy cardboard box, providing additional protection against external impacts.

Multiple units are securely arranged within the box to minimize movement and ensure product integrity.

For bulk orders, boxes are stacked on pallets and wrapped with shrink wrap to stabilize the load during shipping.

All packages are clearly labeled with product information, handling instructions, and shipping details to ensure safe and accurate delivery.

We use reliable shipping carriers to guarantee timely and secure delivery of the Connection Terminal Plates to our customers worldwide.

FAQ:

Q1: What is the brand and model number of the Connection Terminal Plate?

A1: The Connection Terminal Plate is manufactured by the brand Sscore and the model number is 16-X0854.

Q2: What certifications does the Connection Terminal Plate have?

A2: This product is certified with IATF16949, ensuring high-quality standards in automotive industry manufacturing.

Q3: What is the minimum order quantity for the Connection Terminal Plate?

A3: The minimum order quantity for this product is 5 pieces.

Q4: What are the payment terms available for purchasing the Connection Terminal Plate?

A4: Payment can be made via L/C, D/A, T/T, or D/P according to customer preference.

Q5: What is the typical delivery time and packaging method for the Connection Terminal Plate?

A5: Delivery time ranges from 7 to 14 working days, and the products are packed using Cato packing to ensure safe transportation.
