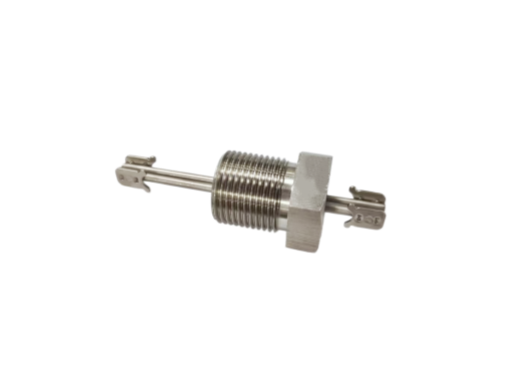

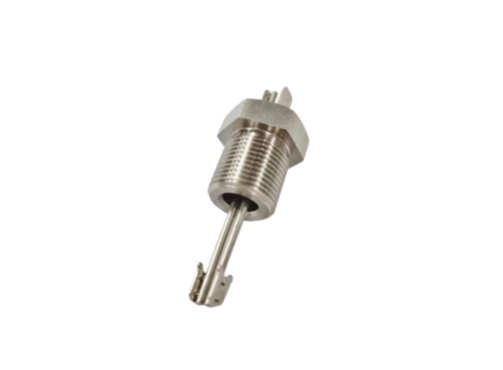

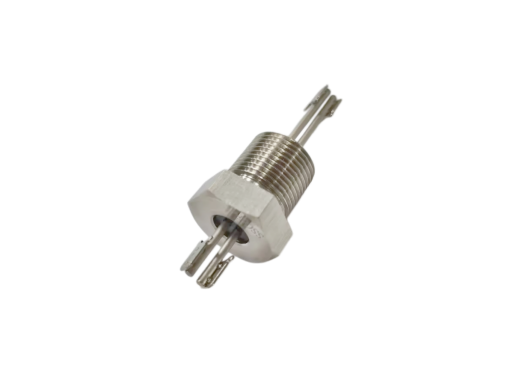

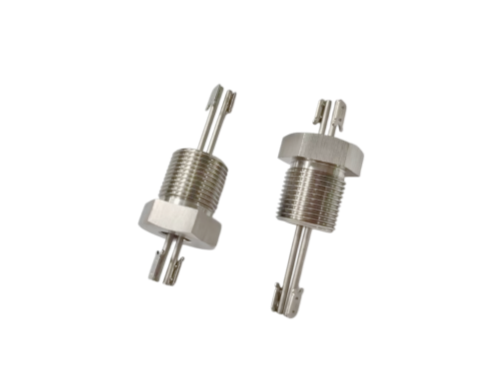

304 Stainless Steel Hermetic Seal Connectors Hermetic Connectors Featuring Durable Construction and Sealing Capabilities

Product Description:

Hermetic Feedthrough Connectors are specialized components designed to provide reliable electrical connections through hermetically sealed barriers. These connectors are essential in applications where maintaining an airtight or vacuum-tight environment is critical, ensuring that sensitive electronics or systems remain protected from external contaminants such as moisture, dust, and gases. With a pin number of 2, these connectors are optimized for straightforward, yet effective, connectivity in a variety of industrial, aerospace, and scientific applications.

One of the standout features of these Hermetic Feedthrough Connectors is their exceptional durability. Built to withstand harsh environments, they exhibit high resistance to vibration and shock. This durability guarantees stable performance even in conditions of mechanical stress, making them ideal for use in aerospace, military, and other demanding fields where equipment is exposed to continuous movement and impact. The robust construction of these connectors ensures longevity and reliability, minimizing maintenance requirements and reducing the risk of connection failures.

Hermetic Sealing Connectors are specifically engineered to maintain an airtight seal. The integrity of the seal is crucial to prevent leaks that could compromise the internal environment of the device or system they serve. These connectors undergo rigorous leak testing, including a rigorous 4.5MPa test with nitrogen (N2), which confirms that there are no leaks under high pressure. This level of leak-tightness is vital for applications requiring vacuum conditions or protection from corrosive or reactive gases, ensuring that the internal atmosphere remains stable and uncontaminated.

The operating temperature range of these Hermetic Feedthrough Devices spans from -40°C to +107°C. This wide temperature tolerance allows them to function reliably in extreme cold and moderately high heat environments. Such versatility makes them suitable for outdoor applications, space exploration, deep-sea equipment, and other scenarios where temperature fluctuations are common. The ability to maintain hermetic sealing and electrical integrity across this temperature range further underscores the quality and robustness of these connectors.

Hermetic Feedthrough Adapters facilitate the integration of these connectors into larger systems. They provide seamless connectivity solutions that bridge different components while preserving the hermetic seal required by the application. These adapters are critical in customizing configurations to meet specific design requirements, enabling engineers to implement hermetic sealing without compromising on electrical performance or environmental protection.

In summary, Hermetic Feedthrough Connectors offer a combination of durability, reliability, and environmental protection that is unmatched in the market. Their high resistance to vibration and shock ensures stable operation in challenging conditions, while the stringent leak test certification guarantees airtight performance. With a pin number of 2, they provide straightforward yet effective connections suitable for a broad range of applications. The wide operating temperature range from -40°C to +107°C further enhances their applicability in diverse environments. Whether used as Hermetic Sealing Connectors, Hermetic Feedthrough Devices, or in conjunction with Hermetic Feedthrough Adapters, these connectors deliver superior performance and peace of mind to engineers and system designers.

Features:

• Product Name: Hermetic Feedthrough Connectors
• Operating Temperature Range: -40°C to +107°C
• Connector Type: Hermetic
• Leak Test: 4.5MPa with N2, no leak
• Voltage Rating: 2000 VAC
• Housing Material: 304 Stainless Steel
• Ensures reliable performance with Hermetic Seal Connectors
• Designed as advanced Hermetic Feedthrough Devices for secure connections
• High-quality Hermetic Seal Connectors for leak-proof operation

Technical Parameters:

Applications:

The SSCore Hermetic Feedthrough Connectors, model number 16-X1433, are designed for a wide range of demanding application occasions and scenarios. These connectors are essential components in environments requiring secure, reliable, and durable electrical feedthrough solutions. With a working pressure rating of 3MPa and a voltage rating of 2000 VAC, they are perfectly suited for use in high-pressure and high-voltage systems where maintaining hermetic sealing is critical.

One common application occasion for SSCore Hermetic Feedthrough Couplers is in aerospace and defense industries. Their high resistance to vibration and shock, combined with the nickel-plated connector finish and SUH446 stainless steel pins, ensures long-lasting performance even under extreme conditions. These couplers enable safe and efficient transmission of electrical signals through bulkheads or pressure vessels without compromising the integrity of the sealed environment.

In industrial automation and instrumentation, Hermetic Feedthrough Adapters from SSCore are widely used to connect sensitive sensors and control devices that operate under harsh conditions. The adapters facilitate secure connections in vacuum or pressurized chambers, ensuring that signal integrity is maintained while protecting against contamination or leakage. The vacuum packaging and durability of these connectors further enhance their suitability for such critical applications.

Hermetic Feedthrough Terminals are also frequently employed in medical and scientific research equipment, where sterile and hermetically sealed connections are mandatory. The SSCore 16-X1433 model, with its robust construction and reliable electrical performance, supports devices such as MRI machines, particle accelerators, and laboratory vacuum systems. The connectors’ ability to withstand mechanical stress and electrical demands makes them integral to the functionality and safety of these systems.

With a minimum order quantity of 5 pieces and a supply ability of 50,000 pieces per month, SSCore ensures timely delivery within 7 to 14 working days. The product is competitively priced between 10 to 60 Chinese Yuan and can be purchased with various payment terms including L/C, D/A, T/T, and D/P. Each connector is vacuum packaged to maintain cleanliness and quality during transport and storage.

Overall, SSCore Hermetic Feedthrough Connectors, including couplers, adapters, and terminals, stand out as dependable solutions for applications requiring hermetic sealing, durability, and high electrical performance across industries such as aerospace, industrial automation, medical technology, and scientific research.

Customization:

SSCore offers customized Hermetic Feedthrough Terminals designed to meet your specific requirements. Our model 16-X1433 Hermetic Connectors System ensures a reliable hermetic seal, featuring high durability with resistance to vibration and shock, and a working pressure of 3MPa.

These Hermetic Seal Connectors operate efficiently within a temperature range of -40°C to +107°C and support a voltage rating of 2000 VAC. You can choose from multiple mounting styles including flange, threaded, and weldable options to best suit your application.

We maintain a supply ability of 50,000 pieces per month with a minimum order quantity of 5 pieces. Prices range from 10 to 60 ￥ per unit, and all products are delivered in vacuum packaging to ensure quality and safety.

Our delivery time is between 7 to 14 work days, and we accept flexible payment terms including L/C, D/A, T/T, and D/P. Trust SSCore for top-quality, customizable Hermetic Feedthrough Connectors tailored to your needs.

Support and Services:

Our Hermetic Feedthrough Connectors are designed to provide reliable, leak-proof electrical connections in extreme environments. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and customization options to meet your specific application requirements.

We offer comprehensive services including product selection assistance, design consultation, and after-sales support to ensure optimal performance of your hermetic feedthrough solutions. Our connectors undergo rigorous testing to guarantee durability, high vacuum integrity, and resistance to thermal and mechanical stresses.

For maintenance and repair, we provide detailed service manuals and can offer refurbishment services to extend the lifecycle of your connectors. Additionally, custom feedthrough configurations can be developed to accommodate unique interface and environmental challenges.

Trust our technical support and services to deliver high-quality hermetic feedthrough connectors that maintain signal integrity and environmental sealing in demanding conditions.

Packing and Shipping:

The Hermetic Feedthrough Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static, moisture-resistant packaging to prevent any damage or contamination. The products are then placed in custom-fitted foam inserts within sturdy, corrugated cardboard boxes to minimize movement and absorb shocks.

For shipping, we utilize reliable carriers that offer tracking and insurance options to guarantee safe and timely delivery. Depending on the destination, expedited or standard shipping methods are available to meet your requirements. All shipments are handled with care to maintain the integrity and quality of the Hermetic Feedthrough Connectors upon arrival.

FAQ:

Q1: What is the brand and model number of this Hermetic Feedthrough Connector?

A1: The Hermetic Feedthrough Connector is manufactured by SSCore, and the model number is 16-X1433.

Q2: What is the minimum order quantity for this product?

A2: The minimum order quantity for the SSCore 16-X1433 Hermetic Feedthrough Connector is 5 pieces.

Q3: What are the pricing details for this connector?

A3: The price range for the Hermetic Feedthrough Connector (model 16-X1433) is between 10 to 60 ￥ per piece, depending on the order quantity and specifications.

Q4: How is the product packaged and what is the delivery time?

A4: The Hermetic Feedthrough Connectors are vacuum packaged to ensure quality and safety. The typical delivery time is between 7 to 14 working days.

Q5: What payment terms does SSCore accept for this product?

A5: SSCore accepts multiple payment terms including L/C (Letter of Credit), D/A (Documents Against Acceptance), T/T (Telegraphic Transfer), and D/P (Documents Against Payment).

Q6: What is the monthly supply capacity of this Hermetic Feedthrough Connector?

A6: SSCore can supply up to 50,000 pieces of the Hermetic Feedthrough Connector 16-X1433 per month.
