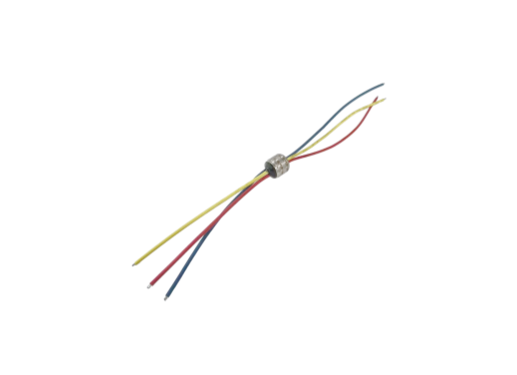

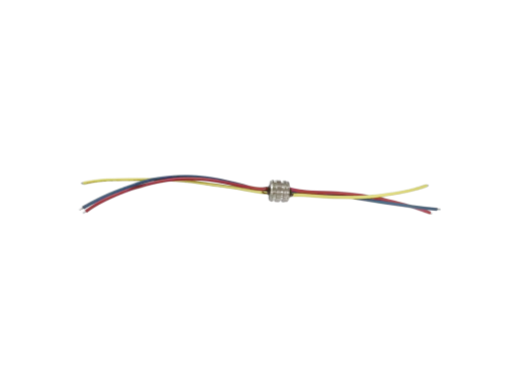

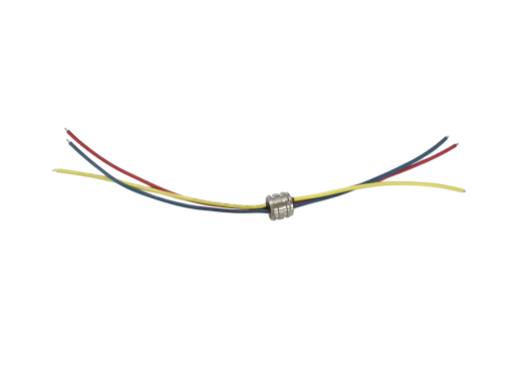

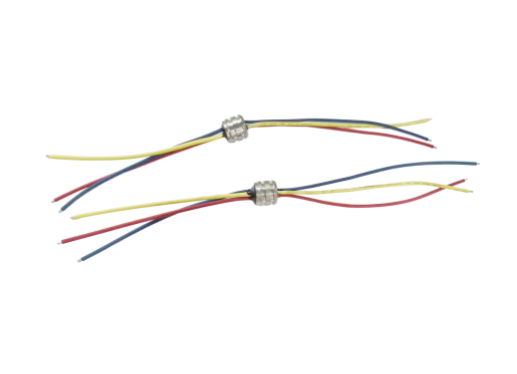

Epoxy Curing Hermetic Seal Connectors Incorporating 304 Stainless Steel Body Providing Stable and Electrical Connections

Product Description:

The Hermetic Feedthrough Connectors manufactured by SSCore are precision-engineered components designed to provide reliable and durable electrical connections through sealed barriers. These connectors are essential in applications where maintaining environmental isolation while ensuring electrical continuity is critical. The product line includes Hermetic Feedthrough Couplers, Hermetic Feedthrough Assemblies, and Hermetic Feedthrough Adapters, each tailored to meet rigorous industry standards and demanding operational conditions.

One of the key features of these Hermetic Feedthrough Connectors is their high-quality contact plating. The contacts are plated with Electroless Nickel, which offers excellent corrosion resistance, enhanced durability, and stable electrical conductivity. This plating process ensures that the connectors maintain their performance integrity over extended periods, even in harsh environments where exposure to moisture, chemicals, or extreme temperatures is common.

The glass materials used in these connectors are made from ELAN #48, a specialized type of glass known for its superior insulating properties and thermal stability. ELAN #48 glass provides a hermetic seal that is both robust and reliable, preventing any leakage of gases or fluids through the connector interface. This glass-to-metal sealing technique is fundamental in creating a secure barrier that protects sensitive electronic components and systems from contamination and environmental damage.

To further enhance the sealing performance, the Hermetic Feedthrough Connectors incorporate an O-RING with dimensions of Ø14X1.8, crafted from FKM 70. FKM is a high-performance fluoroelastomer known for its excellent resistance to heat, chemicals, and aging. The O-RING ensures a tight and resilient seal, maintaining the hermetic integrity of the assembly under varying pressure and temperature conditions. This sealing component is crucial in applications such as aerospace, medical devices, and industrial instrumentation, where failure is not an option.

Additionally, the connectors come equipped with lead wires of 12 AWG thickness, insulated with PTFE (Polytetrafluoroethylene), and color-coded in red and black for easy identification. PTFE insulation is renowned for its superior chemical resistance, high-temperature tolerance, and low friction properties, making it ideal for demanding electrical wiring applications. The 12 AWG lead wire ensures sufficient current-carrying capacity, supporting a wide range of electrical loads without compromising safety or performance.

SSCore’s Hermetic Feedthrough Couplers, Hermetic Feedthrough Assemblies, and Hermetic Feedthrough Adapters are widely used in sectors that require uncompromising reliability and precision. These include aerospace, defense, medical devices, semiconductor manufacturing, and scientific research. The connectors facilitate the transfer of signals and power through sealed environments such as vacuum chambers, pressurized systems, and hermetically sealed enclosures, ensuring operational continuity without compromising the integrity of the sealed environment.

In summary, SSCore’s Hermetic Feedthrough Connectors offer a combination of advanced materials and superior engineering. The Electroless Nickel contact plating provides durable and corrosion-resistant electrical contacts, while the ELAN #48 glass ensures a robust hermetic seal. The FKM 70 O-RING enhances sealing reliability, and the PTFE insulated 12 AWG lead wires guarantee safe and efficient electrical connectivity. Together, these features make the Hermetic Feedthrough Couplers, Assemblies, and Adapters an ideal choice for applications demanding high performance, reliability, and environmental protection.

Choosing SSCore’s Hermetic Feedthrough Connectors means investing in components that deliver exceptional quality, stringent hermetic sealing, and long-lasting electrical performance. Whether used in critical aerospace missions, sensitive medical devices, or industrial systems requiring absolute isolation, these connectors provide the confidence and assurance necessary for success in the most challenging environments.

Features:

• Product Name: Hermetic Feedthrough Connectors
• Manufacturer: SSCore
• Heat Shrinking Tube Material: PTFE for excellent insulation and durability
• Pin Material: High-quality 4J50 ALLOY ensuring reliable conductivity
• EPOXY: CURING process applied for enhanced sealing and strength
• Leak Test: Less than 1X10 ^-8 Mbar.l/s at 1 ATM, ensuring superior hermeticity
• Ideal for use in Hermetic Cable Connectors applications
• Designed as part of Hermetic Feedthrough Assemblies for secure and reliable connections
• Compatible with Hermetic Feedthrough Couplers for versatile integration

Technical Parameters:

Applications:

The SSCore Hermetic Feedthrough Connectors, model number 41-X0720, are designed for specialized applications where airtight and reliable electrical connections are critical. These connectors are ideal for use in various industries including aerospace, medical devices, semiconductor manufacturing, and vacuum systems. The hermetic feedthrough couplers and adapters ensure a secure and leak-proof interface, making them indispensable in environments that demand uncompromising sealing performance.

Manufactured using high-quality ELAN #48 glass materials combined with robust 304 stainless steel nuts and FKM 70 O-rings (Ø14X1.8), these connectors provide exceptional durability and resistance to harsh conditions. The epoxy curing process further enhances the structural integrity, ensuring the connectors maintain their hermetic seal even under extreme pressure differentials. With a leak test rating of less than 1X10^-8 Mbar.l/s at 1 ATM, the SSCore hermetic connectors system guarantees minimal leakage, making them suitable for high-vacuum and ultra-high vacuum applications.

These hermetic feedthrough couplers and adapters are frequently used in scenarios such as vacuum chambers, high-pressure vessels, and sealed electronic enclosures where electrical signals or power need to be transmitted without compromising the internal environment. They are also essential in medical implantable devices and instrumentation where biocompatibility and airtight sealing are crucial. The SSCore connectors’ packaging in vacuum-sealed packs ensures that each piece maintains its integrity during storage and transportation.

With a supply ability of 50,000 pieces per month and a minimum order quantity of 5 pieces, SSCore offers a balanced solution for both small-scale and large-scale production needs. The price range of 10 to 60 ￥ makes these hermetic connectors an economical choice without sacrificing quality. Delivery time of 7 to 14 work days and flexible payment terms including L/C, D/A, T/T, and D/P further streamline the procurement process.

In summary, the SSCore 41-X0720 hermetic feedthrough connectors, couplers, and adapters form a comprehensive hermetic connectors system that excels in providing airtight, reliable, and durable electrical feedthrough solutions for demanding industrial and scientific applications.

Customization:

SSCore offers customized Hermetic Feedthrough Assemblies tailored to meet your specific requirements. Our model 41-X0720 Hermetic Feedthrough Terminals are designed with precision, featuring electroless nickel contact plating for superior conductivity and durability. Each unit includes an O-RING sized Ø14X1.8 made from FKM 70 to ensure a reliable hermetic seal, complemented by high-quality ELAN #48 glass materials and epoxy curing for enhanced insulation and strength.

With a minimum order quantity of 5 pieces and a competitive price range of 10 - 60 ￥ per unit, SSCore guarantees flexible ordering options to suit your production needs. All products are carefully packaged in vacuum packages to maintain integrity during transit.

Our supply ability stands at 50,000 pieces per month, ensuring timely delivery within 7 to 14 work days. We accept multiple payment terms including L/C, D/A, T/T, and D/P for your convenience. Trust SSCore, the manufacturer committed to quality and performance in Hermetic Feedthrough Assemblies and Hermetic Feedthrough Terminals.

Support and Services:

Our Hermetic Feedthrough Connectors are designed to provide reliable and durable electrical connections in environments requiring airtight seals. These connectors are ideal for applications in aerospace, medical devices, and industrial equipment where maintaining the integrity of the sealed environment is critical.

For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and customization options to meet specific application requirements. Our team of experts is available to help you select the right feedthrough connector based on your voltage, current, and environmental needs.

We provide detailed product datasheets, application notes, and instructional materials to ensure proper usage and maximize the performance of your hermetic feedthrough connectors. Additionally, custom design services are available for specialized feedthrough solutions.

Our support services also include warranty coverage and repair options to ensure long-term reliability. We are committed to delivering high-quality products and responsive customer service to support your projects from development through production.

Packing and Shipping:

Our Hermetic Feedthrough Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static, moisture-resistant packaging to prevent contamination and damage. The packaging materials are selected to provide cushioning against shocks and vibrations, maintaining the integrity of the hermetic seal and sensitive components.

For shipping, we utilize reliable carriers with tracking capabilities to guarantee timely and safe delivery. All shipments are handled with care, and we offer various shipping options to meet your specific needs, including expedited and insured services. Upon request, we provide detailed documentation and compliance certificates to facilitate smooth customs clearance and quality assurance.

FAQ:

Q1: What is the brand and model number of the Hermetic Feedthrough Connectors?

A1: The Hermetic Feedthrough Connectors are from the brand SSCore, and the model number is 41-X0720.

Q2: What is the minimum order quantity for these connectors?

A2: The minimum order quantity for the SSCore Hermetic Feedthrough Connectors (model 41-X0720) is 5 pieces.

Q3: What is the price range for the SSCore Hermetic Feedthrough Connectors?

A3: The price range for these connectors is between 10 to 60 Chinese Yuan (￥) per piece, depending on the specifications and order quantity.

Q4: How are the Hermetic Feedthrough Connectors packaged?

A4: The connectors are packaged in vacuum packaging to ensure protection during shipping and storage.

Q5: What is the typical delivery time and payment terms for ordering these connectors?

A5: The delivery time is usually between 7 to 14 working days. Accepted payment terms include L/C, D/A, T/T, and D/P.

Q6: What is the supply capacity for the SSCore Hermetic Feedthrough Connectors?

A6: The supply ability is approximately 50,000 pieces per month.
